3C certification for wires and cables

Certification project: 3C certification for wires and cables

Wires and cables are used a lot, almost everywhere. Is there anything you don't know about wires and cables? I won't explain it too much here. 3C certification is a mandatory certification in China, and the scope is also very wide. Wires and cables are within the scope of CCC certification control. Wire and cable products are important products within the scope of CCC certification control. Because they are the most commonly used products in the public environment, the control of such products is also very strict. The CCC certification mark for wire and cable products is also a key issue that enterprises need to pay attention to. CCC safety certification for wire and cable is a mandatory certification product, and well-known brands such as wire and cable focus on providing high-quality products in this industry. They are all certified by 3C. Without obtaining certification and bearing the designated certification mark on the product, it is not allowed to be sold, imported, or used. This is especially true for wires and cables. Products with CCC certification are generally safe to use. Let's take a look at the specific procedures for wire and cable 3C certification.

The wire and cable products are as follows:

1. Wire components;

2. Mining rubber sheathed flexible cables;

3. Wire and cable for railway locomotives and vehicles with rated AC voltage of 3kV and below;

4. Rubber insulated wires and cables with a rated voltage of 450/750V and below;

5. Our organization can act as an agent to apply for all wire types included in CCC for PVC insulated wires and cables with a rated voltage of 450/750 V and below, and provide guidance on sampling various wire types for your company.

The adjustment of the scope of application caused by changes in laws, regulations, relevant product standards, technology, industrial policies, etc. shall be based on the announcement issued by the National Certification and Accreditation Administration.

CCC certification requirements for wires and cables

a. Aluminum wires must comply with industry standards, and the wires of national standard products are all copper conductors

b. If there is - IEC - letter in the model, it must comply with the national standard; In industry standards, model letters are written in pinyin

c. Unequal cross-section cables in rubber wire (such as three large and one small structures) must be industry standards

d. The product categories for implementing CCC certification and production license are different, independent of each other, and currently not in conflict. However, products that implement license management can apply for CQC logo certification (also known as voluntary certification)

e. There are approximately 88 product model series and nearly 1000 specifications that implement CCC certification, and the products are simple and complex.

1. There are 5 types of products that implement production license management: overhead stranded wire (such as steel core aluminum stranded wire), 0 enameled round copper wire, 0 plastic insulated control cable (450/750V), 0 extruded insulated power cable (0.6/1-26/35kV), 0 overhead insulated cable (1 kV and 10 kV, 35 kV)

2. There are 5 products under the old rules and 8 products under the new rules for implementing CCC certification management. In fact, the newly expanded products belong to the model specifications or material extensions of the old 5 products, so it is still sufficient to master them according to the old 5 products.

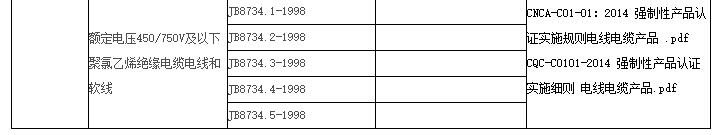

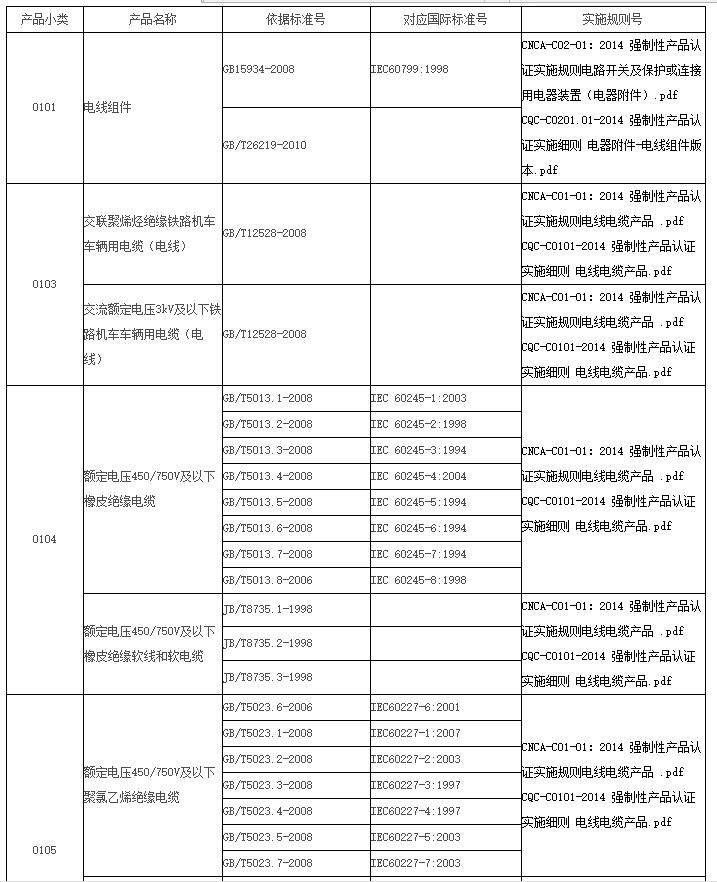

Implementation rules for 3C certification standards for wires and cables

Detailed information on CCC application for wires and cables

Product manual;

Product specification sheet;

Product maintenance manual;

Product circuit diagram (including schematic and printed circuit layout);

Explanation of the differences between the main delivery model product and the coverage model product in the same application unit;

List of key components related to product and safety, as well as a list of major components that affect electromagnetic compatibility performance;

Copy of certification certificate for critical safety components of the product;

CB test certificate and report of the product (if any);

Authorization letter for trademark use of the product (if any);

3C certification process for wires and cables

1. Both parties sign an agency contract

2. Determine the scope of customer certification application

3. Provide the customer's business license and organizational code certificate (electronic version)

4. Provide the customer's English name and address, as well as their contact person, phone number, and fax number

5. Waiting for the customer to submit a formal application for CCC certification

6. After the formal acceptance of the certification application, wait for the customer to prepare the necessary documents and materials for CCC certification (including application form, product description information, factory inspection survey form, etc. Note: The above materials need to be signed and stamped by the customer in cooperation, and then sent by express delivery)

7. After receiving the submitted application documents, a formal sample submission request will be issued

8. After the sample test is qualified, assist the customer in preparing various documents and materials required for CCC factory audit (including program files, quality manuals, various record files, forms, etc.)

9. After the pending factory is completed and the customer receives the CCC certificate, assist the customer in completing the application for the CCC molding certificate

10. All projects completed

How much does it cost for 3C certification of wires and cables? For specific inquiries, please call us

1. CCC application fee: The application fee is usually around $150. The cost includes the translation of the application.

2. CCC product testing costs: The cost of product testing varies greatly, depending on the type of product you want to test. Please remember that you need to add the cost of the test samples used. Based on your product, it can cost $850 to $2500. The key is if you need EMC testing, as these tests are expensive. If you don't know what EMC is, it represents electromagnetic compatibility. EMC testing can ensure that your product does not interfere with the functionality of surrounding components due to the emission or immunity of radio waves, which may also lead to physical damage.

The initial cost of CCC inspection (and subsequent inspections) ranges from $1500 to $3000, depending on your product. More complex products and production processes require more thorough factory inspections (as well as more professional knowledge from auditors).

4. Travel and expenses for auditors: Having two people audit your factory within 2 days usually costs around $7000 (including accommodation and airfare).

5. CCC Tags/Markings: To apply for acceptance of the use of the CCC logo, you will need to incur an additional fee of approximately $120-250.

6. The price of CCC certification mark posts: The price of stickers is usually between 0.01 USD and 0.05 USD.

The above is the introduction to the process of applying for wire and cable 3C certification, the cost information of wire and cable 3C certification, the standards and requirements of wire and cable 3C certification, and other related information. The market for wire and cable is very large and the demand is also high, so enterprises should also handle it in advance and seize market opportunities. We provide one-stop services, hoping to help you.
